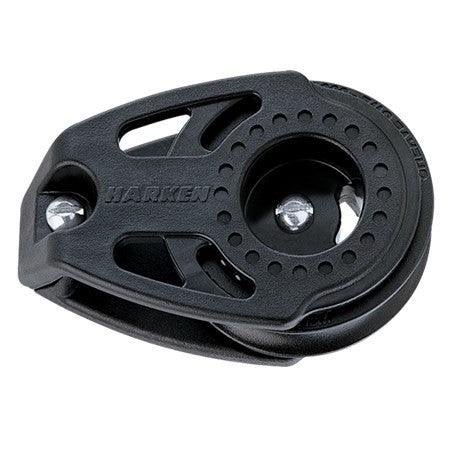

HARKEN single pulley 40mm Carbo 2644

40 mm Carbo pulley to be flattened.
Carbo AirBlocks® pulleys are 60% stronger and 30% lighter than our classic pulleys.
Carbo 40 mm can be used for making jib and mainsail sheet tackles on high-performance dinghies and for high-load trim lines on small keelboats.
The resin-Nylon composite cheeks are reinforced with long glass fibers allowing the realization of a
compact pulley with high strength to weight ratio.
The sheaves rotate on high strength ball bearings with adjusted raceways for minimal coefficient of friction.
Ball bearings, sheaves and cheeks are carbon black treated for superior UV resistance.


Use for:
Mainsail sheets and jib sheets
Mainsheet fine tuning
Tuning bumps
Restraint hoists
Cunninghams
Downhaul
Features :
Ø of the sheave: 40 mm
Length: 70mm
Weight with shackle: 34 gr
Ø of the pin: -
Max rope Ø: 10 mm
Maximum working load: 220 kg
Breaking load: 735 kg


Suitable for:
- 420
- 445
- 470
- 485
- 490
- 505
- Contender
- Flying Dutchman
- Finn
-Fireball
- Coralle
-Korsar

-Lightning
- Marauder
-Open 5.00
- Open 5.70
- Pirate
- Ponant
- Rascal
- Windy
