HARKEN single pulley 40mm Carbo 2652

HARKEN single pulley 40mm Carbo 2652

Regular price €45.95 EUR
Regular price €48.00 EUR Sale price €45.95 EUR
Sale Sold out
Taxes included. Shipping calculated at checkout.

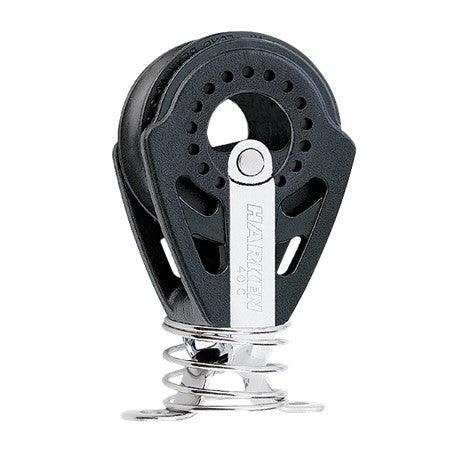

Carbo 40 mm vertical fixed pulley with saddle and spring.
Carbo AirBlocks® pulleys are 60% stronger and 30% lighter than conventional pulleys.
The Carbo 40 mm can be used for making jib and mainsail sheet tackles on high-performance dinghies and for high-load trim lines on small keelboats.
The resin-Nylon composite cheeks are reinforced with long glass fibers allowing the realization of a
compact pulley with high strength to weight ratio.
The sheaves rotate on high strength ball bearings with adjusted raceways for minimal coefficient of friction.
Ball bearings, sheaves and cheeks are carbon black treated for superior UV resistance.


Use for:
Mainsail sheets and jib sheets
Mainsheet fine tuning
Tuning bumps
Restraint hoists
Cunninghams
Downhaul
Features :
Ø of the sheave: 40 mm
Length: 70mm
Weight with shackle: 48 gr
Ø of the pin: -
Max rope Ø: 10 mm
Maximum working load: 220 kg
Breaking load: 735 kg


Suitable for:
- 420
- 445
- 470
- 485
- 490
- 505
- Caddy
- Contender
- Europe
- Flying Dutchman
- Finn
-Fireball
- Coralle
-Korsar
-Laser
-Lightning
- Marauder
- Moth
-Open 5.00
- Open 5.70
- Optimist
- Pirate
- Ponant
- Topper
- Rascal
- Windy



Spécifications

Sheave Ø (mm) 40 mm
Ø of sheave (in) 1 9/16 in
Length (mm) 70mm
Length (in) 2 3/4 in
Weight (g) 48g
Weight (oz) 1.7oz
Max rope Ø (mm) 10 mm
Max rope Ø (in) 3/8 in
Maximum working load (kg) 220 kg
Maximum working load 485 lbs.
Breaking load (lbs) 1620 lbs
Breaking load (kg) 735 kg

Matériau

Informations complémentaires
